Smart 16 Port AC Current Meter
WiFi
LoRa
Features
YCM-1600 can measrue 16 port AC Current: 0 ~ 100A. Current coil transformer is set to 2500:1. When different coil ratio is used, current value needs to be adjust accordingly.
PEM-1000 can transmit the measured values using (1) MQTT/WiFi, (2) WiFi and (3) LoRa techniques. Methods (2) requires MQTT server and method (3) requires LoRa Gateway to relay the received messages to the MQTT Server. Messages processed in the MQTT Server can be displayed in the remote PC monitor.
Hardware Features

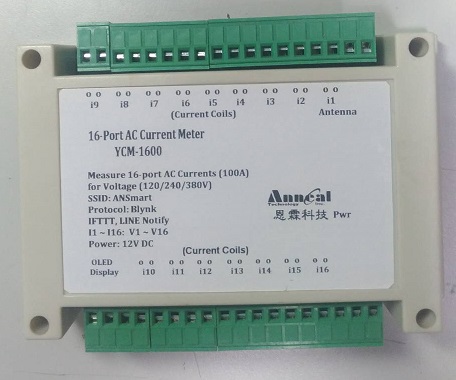

YCM-1600 (AC Current Meter)
WiFi Specification
LoRa Specification
Power Supply
Measure 16 port AC currents (up to 100A)
IEEE 802.11b/g/n
433MHz, BW 125KHz, SF 10
DC 12V
Software Features
Message Protocol
Push Notification
MQTT, JSON, IFTTT, Webhook (Supported by Gateway/Server)
LINE Notify (Supported by Gateway/Server)
Current Coil

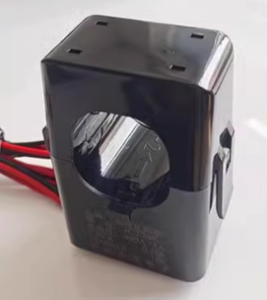

Current Coil (high Amps)
LoRa Antenna
Current coil ratio is 1000:1 for the measured current up to 40 Amps.
High Amps current coil with coil ratio of 1:2000 or 1:3000 to measure up to 80A or 120A currents.
