AQM-1200 - 9 in 1 Air Quality Monitor
Features
AQM-1200 can measrue (1) Temperature (-40 ~ 100 C), (2) Humidity (0 ~ 100%), (3) CO (0 ~ 500 ppm), (4-6) PM1.0/2.5/10 (0 ~ 999 ug/m3), (7) CO2 (400 ~ 5000 ppm), (8) HCHO (0 ~ 2000 ug/m3), (9) TVOC (0 ~ 5000 ug/m3). AQM-1200 displays the measured data with a 2.4″ TFT color display.
PEM-1000 can transmit the measured values using (1) MQTT/WiFi, (2) WiFi and (3) LoRa techniques. Methods (2) requires MQTT server and method (3) requires LoRa Gateway to relay the received messages to the MQTT Server. Messages processed in the MQTT Server can be displayed in the remote PC monitor.
Hardware Features
AQM-1200
WiFi Specification
LoRa Specification
Power Supply
Measure T, H, CO, PM1.0/2.5/10,CO2, HCHO, TVOC
IEEE 802.11b/g/n
433MHz, BW 125KHz, SF 10
DC 12V
Software Features
Message Protocol
Push Notification
MQTT, JSON, IFTTT, Webhook (Supported by Gateway/Server)
LINE Notify (Supported by Gateway/Server)

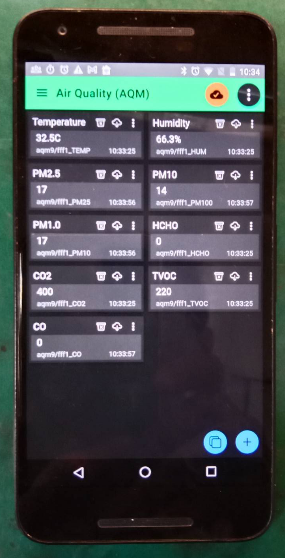

MQTT Smartphone
MQTT Web Display
