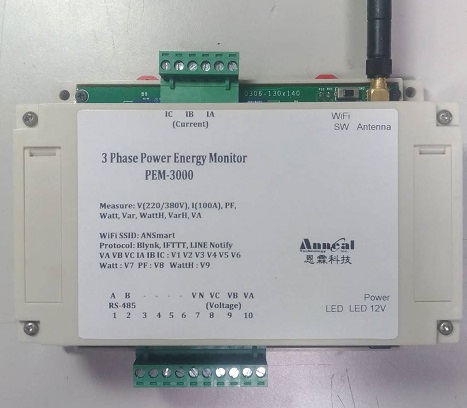

Smart 3 Phase Power Energy Meter (PEM-3000)
WiFi
LoRa
Features
PEM-3000 can measrue 3 phase 4-wire AC (1) Voltage A, B, C: 110V, 220V and 380V AC, (2) Current A, B, C: 0 ~ 100A, (3) Total Active Power (W), (4) Total Reactive Power (Var), (5) Total Apparant Power (VA), (6) Power Factor (PF), (7) Total Active Energy (kWh) and (8) Total Reactive Energy (kVarh)
PEM-3000 can transmit the measured values using (1) MQTT/WiFi, (2) WiFi and (3) LoRa techniques. Methods (2) requires MQTT server and method (3) requires LoRa Gateway to relay the received messages to the MQTT Server. Messages processed in the MQTT Server can be displayed in the remote PC monitor.
Hardware Features
PEM (Power Energy Module)
WiFi Specification
LoRa Specification
Power Supply
Measure 3 phase Voltage, Current, Active/Reactive (Power and Energy), PF
IEEE 802.11b/g/n
433MHz, BW 125KHz, SF 10
DC 12V
Software Features
Message Protocol
Push Notification
MQTT, JSON, IFTTT, Webhook (Supported by Gateway/Server)
LINE Notify (Supported by Gateway/Server)
Current Coil
Current Coil (high Amps)
LoRa Antenna
Current coil is used to measure current from 0 ~ 100 Amps. Coil ratio is 1000:1.
High Amps current coil with coil ratio of 1:2000 or 1:3000 to measure up to 200A or 300A currents.
